Description
Ceratizit Article Number: 7613056001
Ceratizit Material Number: 14583725
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

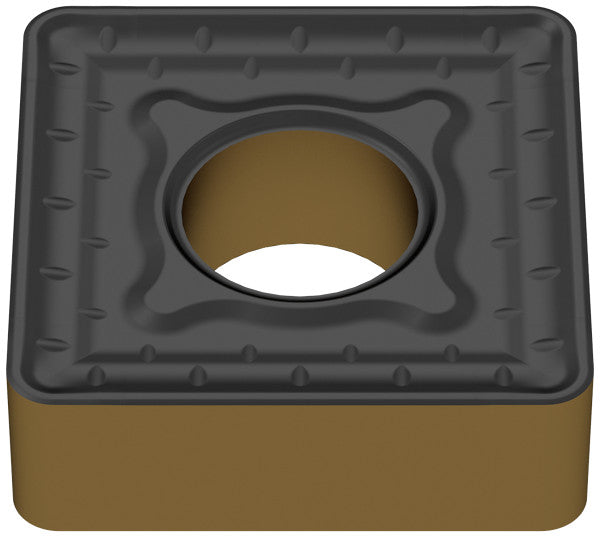

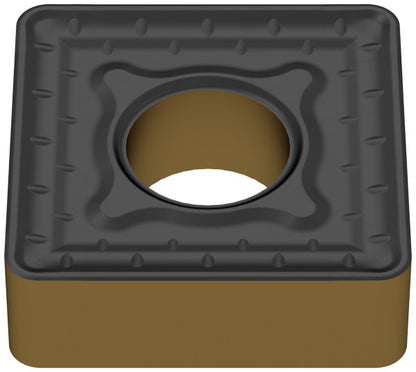

| Name | Ceratizit SNMM 250724SN-R88 CTCP125-P CoreLine Carbide Turning indexable Insert 7613056001 | |
| EDP # | 0741830 | |
| Weight (1 pc.) | 3.0 oz | 75.0 g |
| Product-Carbon-Footprint | D | |
| designation | 250724SN | |
| Corner radius / RE | 0.0945" | 2.400 mm |
| Cutting edge length / L | 1.0000" | 25.400 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Fixing hole diameter / D1 | 0.3591" | 9.120 mm |
| Inscribed circle diameter / IC | 1.0000" | 25.400 mm |
| 856SN | ||
| Size | 25.0000" | 635.000 mm |
| Designation | sn 250724sn | |
| Insert index count / NOI | 4.0000" | 101.600 mm |
| Chip breaker (Ceratizit) / CBMD | -R88 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
