Description
Ceratizit Article Number: 7429260002
Ceratizit Material Number: 11240052
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

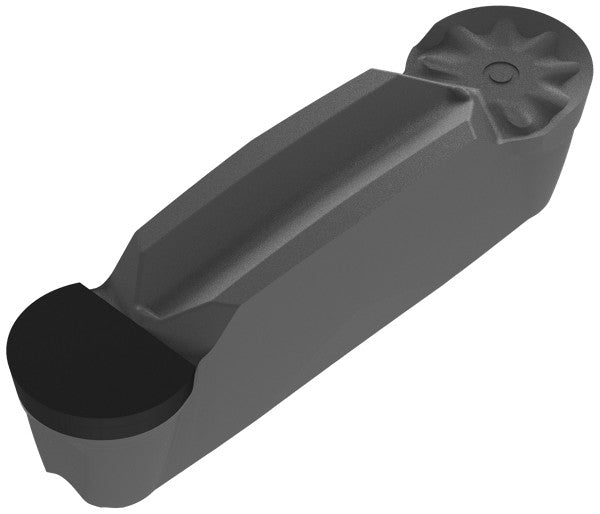

| Name | Ceratizit X32-R3.00FN_A5-F4 CTD4110 MaxiGroove PCD Grooving Insert 7429260002 | |
| EDP # | 0743465 | |
| Weight (1 pc.) | 1.0 oz | 17.4 g |

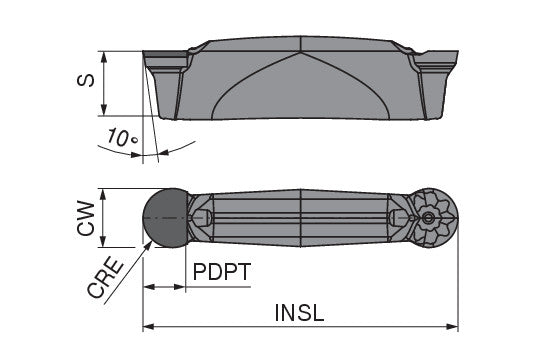

| Cutting width / CW | 0.2362" | 6.000 mm |
| Spot radius / CRE | 0.1181" | 3.000 mm |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | -F4 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
