Description
Ceratizit Article Number: 7410816100
Ceratizit Material Number: 11845237
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

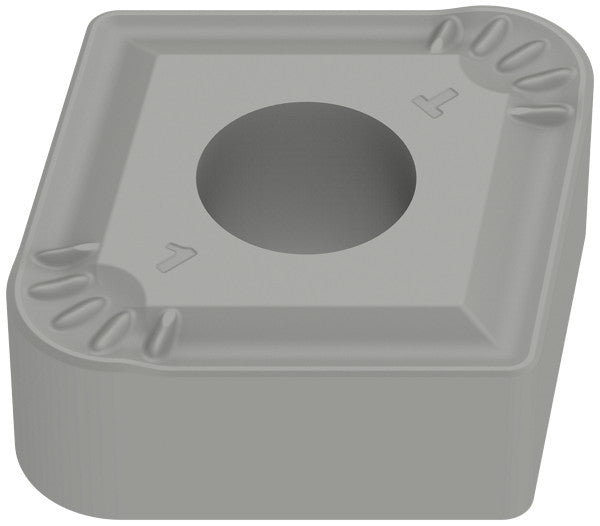

| Name | Ceratizit CNMX 190740SN CTCK120 CARBIDE TURNING INSERT 7410816100 | |
| EDP # | 0743497 | |
| Weight (1 pc.) | 1.0 oz | 35.6 g |
| Product-Carbon-Footprint | C | |
| designation | 190740SN | |

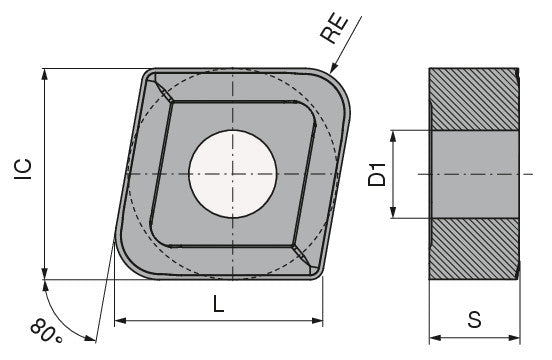

| Corner radius / RE | 0.1575" | 4.000 mm |
| Cutting edge length / L | 0.7598" | 19.300 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
