Description
Ceratizit Article Number: 5106900300
Ceratizit Material Number: 11883036
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

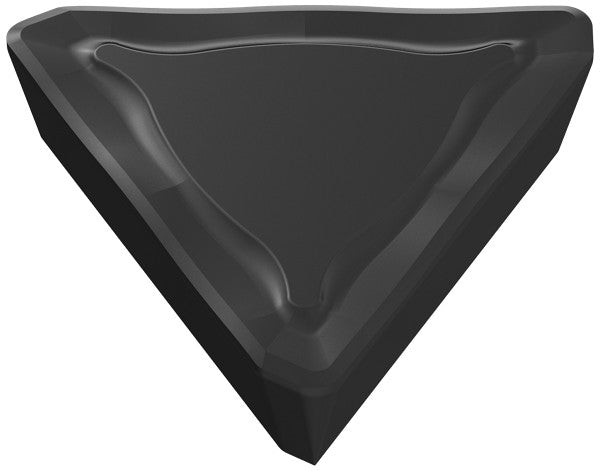

| Name | Ceratizit TPKR 2204PDSR-29 CTCP230 CoreLine Carbide Milling indexable Insert 5106900300 | |
| EDP # | 0743501 | |
| Weight (1 pc.) | 0.4 oz | 12.0 g |

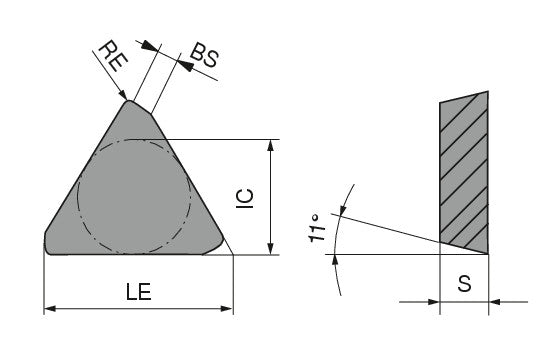

| designation | 2204PDSR | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Cutting edge length / L | 0.8150" | 20.700 mm |
| Trailing edge length / BS | 0.0551" | 1.400 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Clearance angle major / AN | 11 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
