Description
Ceratizit Article Number: 7114860502
Ceratizit Material Number: 11903851
Ceratizit Komet Number (Unpacked): 11903 851
Ceratizit Komet Number (Packed): 11903851
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

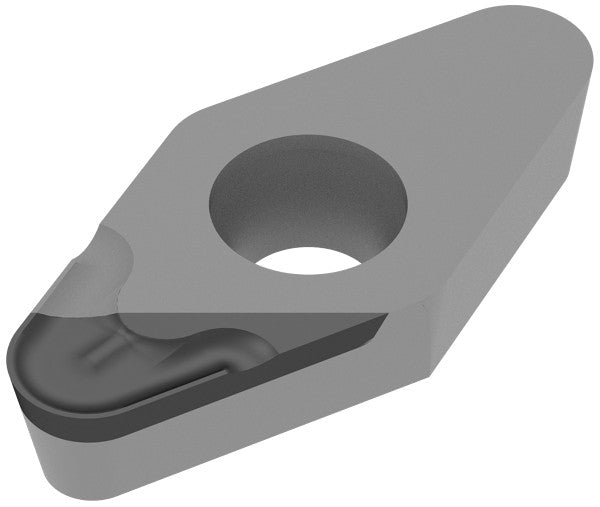

| Name | Ceratizit VCUT 160408TR-015D_A13-M41 CTD4110 CoreLine PCD Turning indexable Insert 7114860502 | |
| EDP # | 0743538 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| designation | 160408TR | |

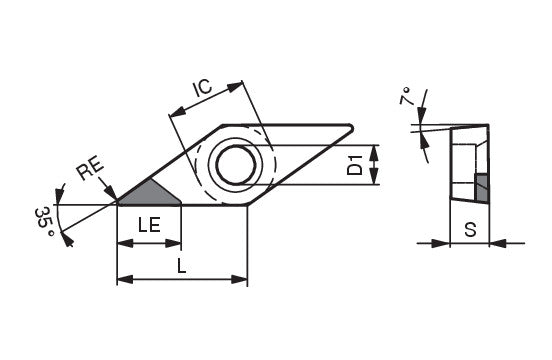

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 332TR | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.5118" | 13.000 mm |
| Face land width / BN | 0.0059" | 0.150 mm |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -M41 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
