Description
Ceratizit Article Number: 7115860002
Ceratizit Material Number: 11904067
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

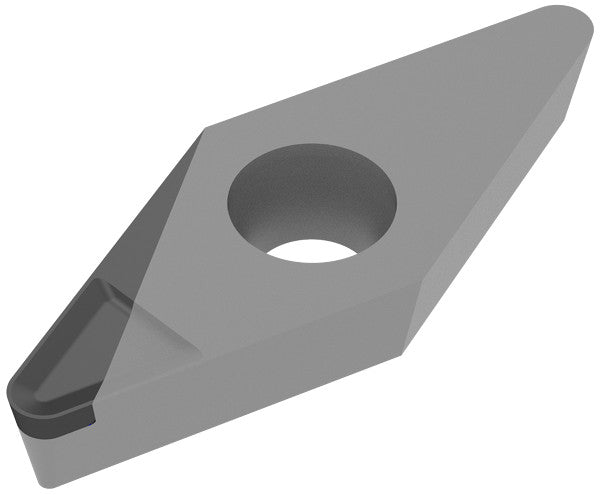

| Name | Ceratizit VPUT 220516FL_A17-R41 CTD4110 CoreLine PCD Turning indexable Insert 7115860002 | |
| EDP # | 0743560 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| designation | 220516FL | |

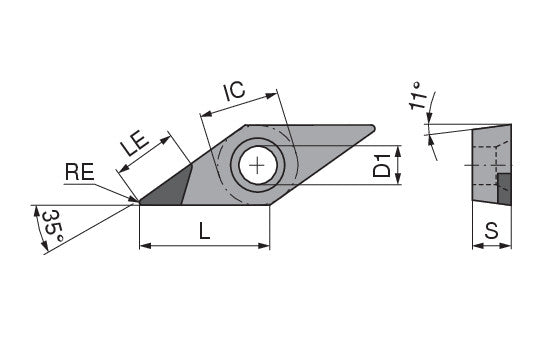

| Corner radius / RE | 0.0630" | 1.600 mm |
| Cutting edge length / L | 0.8701" | 22.100 mm |
| Insert thickness / S | 0.2189" | 5.560 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 43.54FL | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.6693" | 17.000 mm |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -R41 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
