Description
Ceratizit Article Number: 7206002002
Ceratizit Material Number: 12293973
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

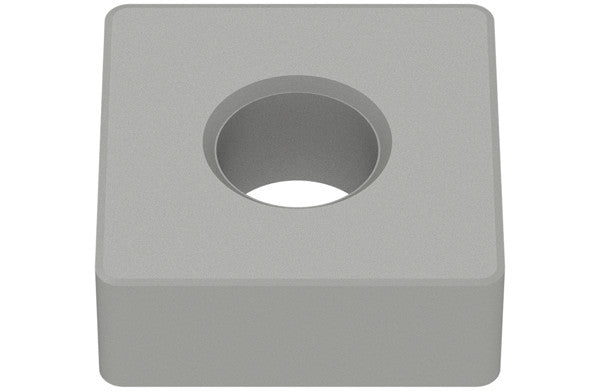

| Name | Ceratizit SNMA 120408SN-025C CTN3110 CoreLine CERAMIC Turning indexable Insert 7206002002 | |
| EDP # | 0743609 | |
| Weight (1 pc.) | 0.1 oz | 2.1 g |
| designation | 120408.0000" | 3058363.200 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2031" | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 120408SN | ||
| support chamfer angle / GB | 15 ° | |
| Face land width / BN | 0.0098" | 0.250 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTN3110 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
