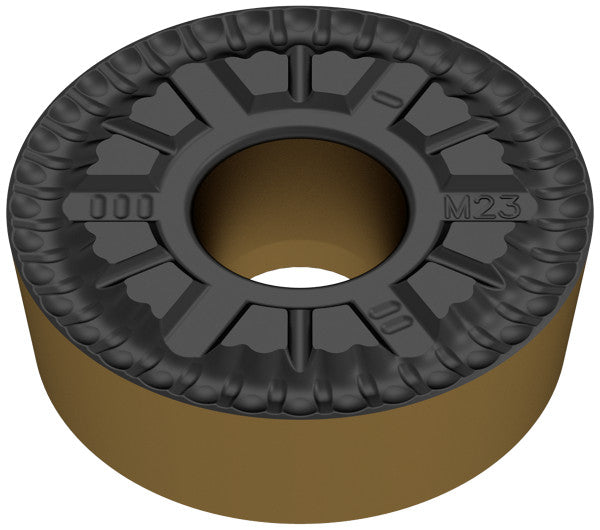

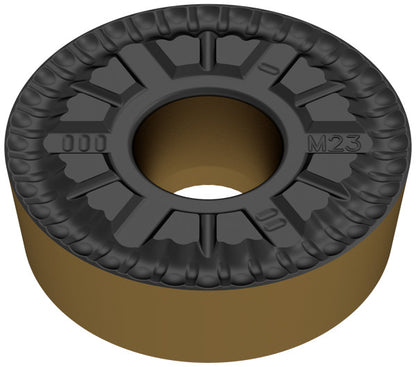

Ceratizit RCMX 2507MOSN-M23 CTCP115-P CoreLine Carbide Turning indexable Insert 7411725400 (0743628)
Ceratizit RCMX 2507MOSN-M23 CTCP115-P CoreLine Carbide Turning indexable Insert 7411725400 (0743628)
Couldn't load pickup availability
Ceratizit Article Number: 7411725400
Ceratizit Material Number: 14654438
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RCMX 2507MOSN-M23 CTCP115-P CoreLine Carbide Turning indexable Insert 7411725400 | |
| EDP # | 0743628 | |
| Weight (1 pc.) | 2.0 oz | 47.0 g |
| Product-Carbon-Footprint | C | |
| designation | 2507M0SN | |
| Corner radius / RE | 0.4921" | 12.500 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Fixing hole diameter / D1 | 0.4134" | 10.500 mm |
| Inscribed circle diameter / IC | 0.9843" | 25.000 mm |
| 85MOSN | ||
| Size | 25.0000" | 635.000 mm |
| Designation | RCMX 2507M0SN | |
| Chip breaker (Ceratizit) / CBMD | -M23 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
