Description
Ceratizit Article Number: 7459152594
Ceratizit Material Number: 14741070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

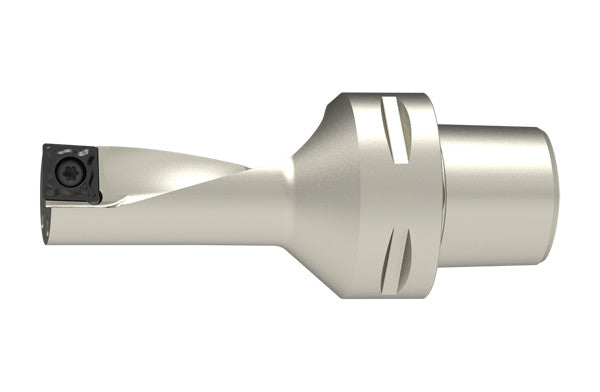

| Name | Ceratizit PSC50-ECC 25L-2.25D 13 EcoCut Classic 2.25xD 7459152594 | |
| EDP # | 0743653 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 685 g |

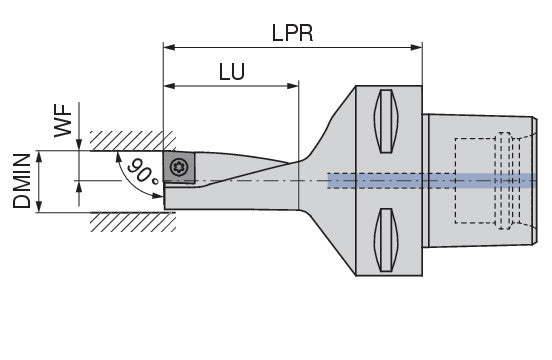

| Minimum bore diameter / DMIN | 0.9843" | 25.000 mm |
| Protruding length / LPR | 3.6614" | 93.000 mm |
| Functional width / WF | 0.4921" | 12.500 mm |
| Insert | XC.T 1304.. | |
| Usable length / LU | 2.2146" | 56.250 mm |
| torque moment | 5 Nm | |
| Machine interface size | PSC 50 | |
| Version | Left-hand | |
Suitable Materials:
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
