Description
Ceratizit Article Number: 5077926000
Ceratizit Material Number: 14743033
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

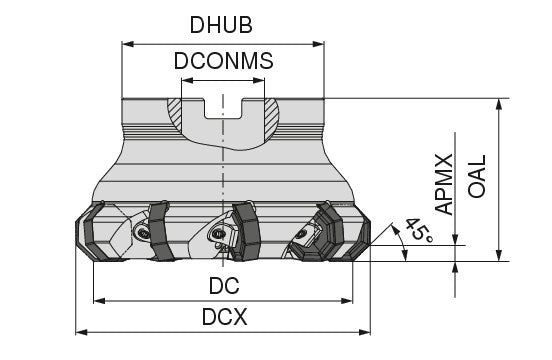

| Properties | ||
|---|---|---|

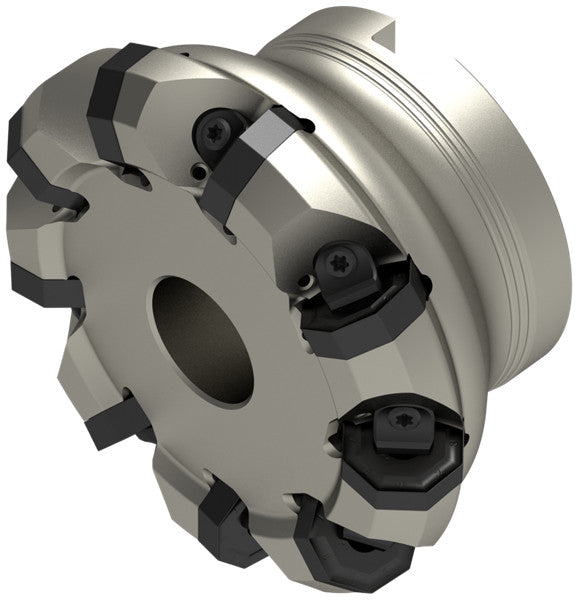

| Name | Ceratizit A273.160.R.14-08 MaxiMill 273-08 Shell Mill 5077926000 | |
| EDP # | 0743669 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 181.0 oz | 5120 g |
| Cutting diameter / DC | 6.2992" | 160.000 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Face mounted insert count / ZNF | 14 | |
| Overall length / OAL | 2.4803" | 63.000 mm |
| Hub diameter / DHUB | 3.8583" | 98.000 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| torque moment | 4 Nm | |
| Tool cutting edge angle / KAPR | 45 ° | |
| Insert | ONKU 0806 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
