Description
Ceratizit Article Number: 7420610101
Ceratizit Material Number: 14773331
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

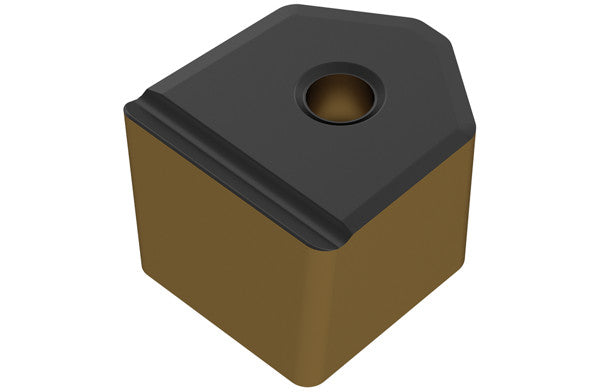

| Name | Ceratizit HX 16.12.60-R71 CTCP125-P MaxiGroove Carbide Grooving Insert Heavy 7420610101 | |
| EDP # | 0743693 | |
| Weight (1 pc.) | 1.0 oz | 38.0 g |
| Product-Carbon-Footprint | D | |
| Machining process - Main Application | Grooving and Turning | |
| Cutting width / CW | 0.6299" | 16.000 mm |
| Insert length / INSL | 0.6693" | 17.000 mm |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Alpha | 110.0000" | 2794.000 mm |
| Relief angle / RA | 3 ° | |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | -R71 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
