Description
Ceratizit Article Number: 7422431001
Ceratizit Material Number: 14774091
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

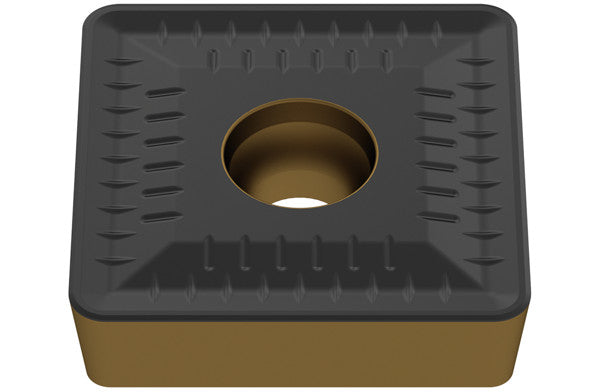

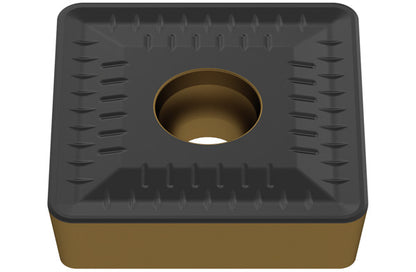

| Name | Ceratizit SCMT 250924SN-R91 CTCP115-P 7422431001 | |
| EDP # | 0743716 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 69.8 g |
| designation | 250924SN | |
| Corner radius / RE | 0.0945" | 2.400 mm |
| Cutting edge length / L | 1.0000" | 25.400 mm |
| Insert thickness / S | 0.3750" | 9.525 mm |
| Fixing hole diameter / D1 | 0.3425" | 8.700 mm |
| Inscribed circle diameter / IC | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -R91 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP115-P | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
