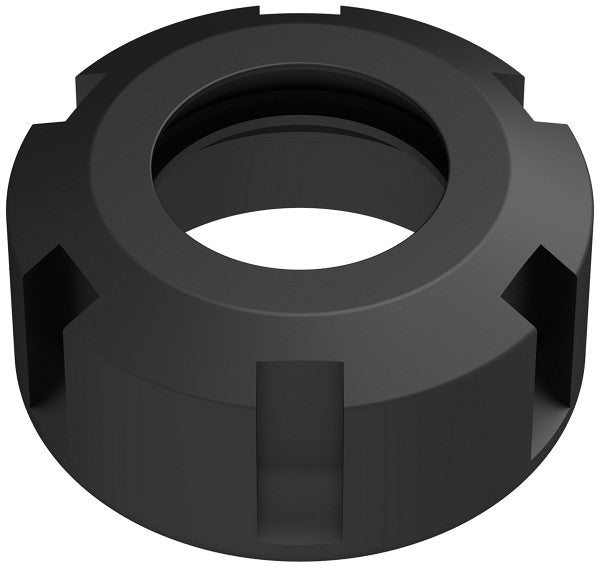

Ceratizit UEM.ER32.M40X1,5.22,3 Lock Nut 6295065600 (0744059)
Ceratizit UEM.ER32.M40X1,5.22,3 Lock Nut 6295065600 (0744059)
Couldn't load pickup availability
Ceratizit Article Number: 6295065600
Ceratizit Material Number: 6295065600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit UEM.ER32.M40X1,5.22,3 Lock Nut 6295065600 | |
| EDP # | 0744059 | |
| Weight (1 pc.) | 5.0 oz | 142 g |
| Connection thread nominal size / THSZMS | M40x1,5 | |
| for collet | 470E (ER32) | |
| Lock nut height / HLN | 0.8780" | 22.300 mm |
| Diameter Lock Nut / DLN | 1.9685" | 50.000 mm |
| Functional diameter / DFC | 1.2598" | 32.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
