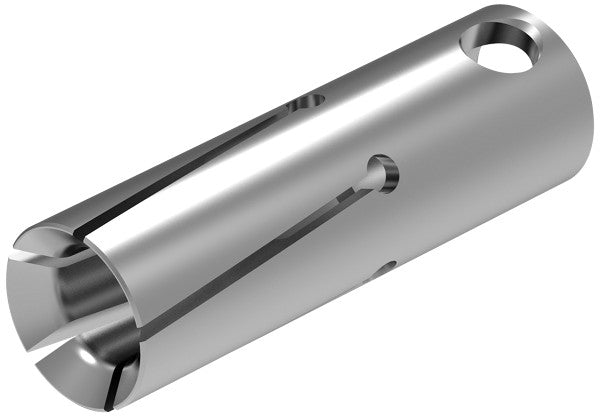

Ceratizit CS.S16.04,760.R Clamping Sleeve 8104904760 (0744349)
Ceratizit CS.S16.04,760.R Clamping Sleeve 8104904760 (0744349)
Couldn't load pickup availability
Ceratizit Article Number: 8104904760
Ceratizit Material Number: 8104904760
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CS.S16.04,760.R Clamping Sleeve 8104904760 | |
| EDP # | 0744349 | |
| Weight (1 pc.) | 1.0 oz | 32.0 g |
| Clamping diameter (DCONWS) / DCONWS | 0.1874" | 4.760 mm |
| Designation | CS. S16 ... R | |
| Pusher Ø | D 16 | |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Keyway width / KWW | 0.2362" | 6.000 mm |
| Functional diameter / DFC | 0.6299" | 16.000 mm |
| Diameter collet offset bore / DCOB | 0.4331" | 11.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
