Description
Ceratizit Article Number: 8274615078
Ceratizit Material Number: 8274615078
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

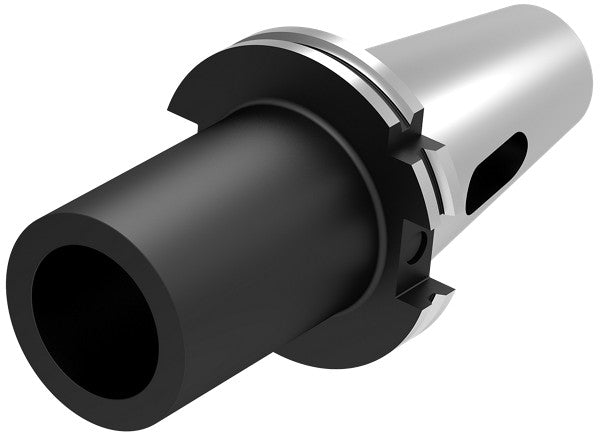

| Name | Ceratizit ISO7388-1.AD50.KH.MK5.105 Taper Sleeve DIN6383 For DIN 228-2D Morse Taper Shanks 8274615078 | |
| EDP # | 0744807 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machine interface size | SK 50 | |
| Cone clamping size | MK5 | |

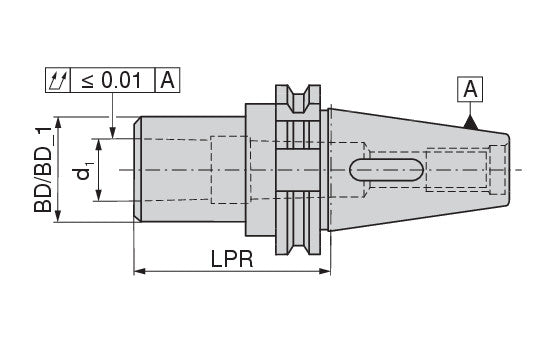

| Clamping diameter (DCONWS) / DCONWS | 1.7480" | 44.399 mm |
| Protruding length / LPR | 4.1339" | 105.000 mm |
| Neck diameter (BD) / BD | 2.4803" | 63.000 mm |
| Overall length / OAL | 8.1398" | 206.750 mm |
| Clamping length machine side / LSC | 4.6457" | 118.000 mm |
| Balance quality | G 6,3 nmax 15000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
