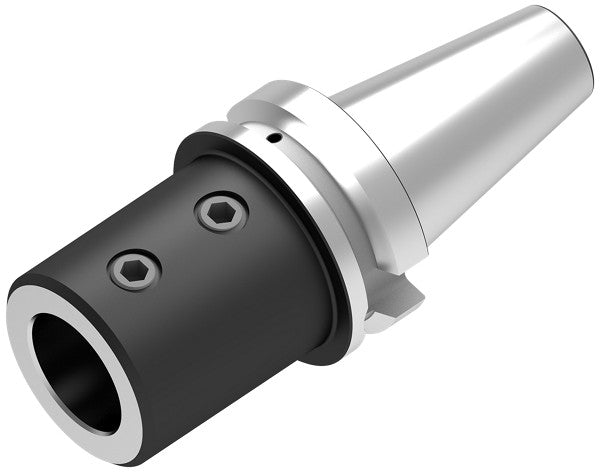

Ceratizit ~ISO7388-2.AD/B40.WBH.20.75.V CoreLine Indexable Insert Drill Adapter 8274812069 (0744816) [SKU:8274812069]

Ceratizit ~ISO7388-2.AD/B40.WBH.20.75.V CoreLine Indexable Insert Drill Adapter 8274812069 (0744816) [SKU:8274812069]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8274812069

Ceratizit Material Number: 8274812069

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

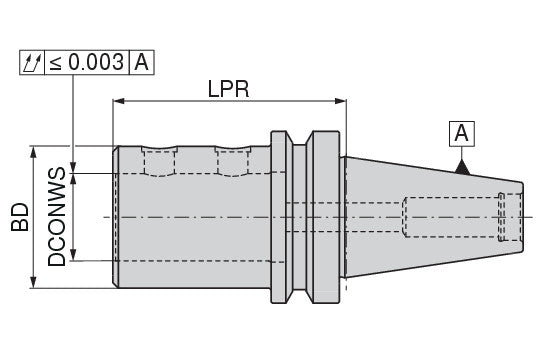

Properties
Name Ceratizit ~ISO7388-2.AD/B40.WBH.20.75.V CoreLine Indexable Insert Drill Adapter 8274812069
EDP # 0744816
Machine interface size BT 40
Clamping diameter (DCONWS) / DCONWS 0.7874" 20.000 mm
Neck diameter (BD) / BD 1.5748" 40.000 mm
Overall length / OAL 5.5276" 140.400 mm
Balance quality G 6.3 n<sub>max.</sub>15000


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
