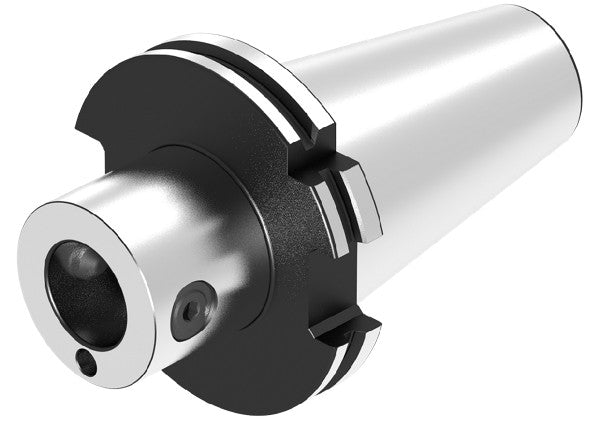

Ceratizit ISO7388-1.FC.AD50.GA.ABS63 HyPower Adapter 8426406373 (0744843) [SKU:8426406373]

Ceratizit ISO7388-1.FC.AD50.GA.ABS63 HyPower Adapter 8426406373 (0744843) [SKU:8426406373]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8426406373

Ceratizit Material Number: 8426406373

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit ISO7388-1.FC.AD50.GA.ABS63 HyPower Adapter 8426406373
EDP # 0744843
Machine interface size SK-FC 50
nominal size / SZID ABS 63

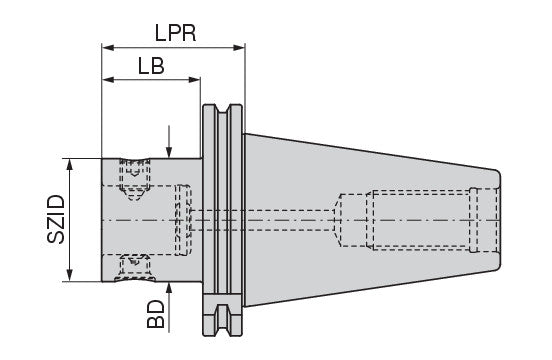

Protruding length / LPR 2.3622" 60.000 mm
Body length / LB 1.6102" 40.900 mm
Clamping diameter (DCONWS) / DCONWS 1.3386" 34.000 mm
Balance quality G 6.3 n<sub>max.</sub>8000


Background Information:

The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.

The SK+ modification follows the Big Plus System specifications under license from BIG Daishowa, namely an AT1 quality cone and double contact.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
