Description
Ceratizit Article Number: 8461762694
Ceratizit Material Number: 8461762694
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

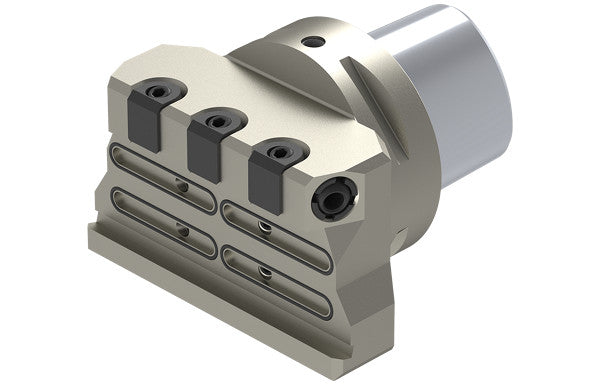

| Name | Ceratizit ISO26623-1.50.KH.90.N.26.DC MonoClamp PSC Parting Blade Holder GX/LX/FX/SX With DirectCooling 8461762694 | |
| EDP # | 0744864 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

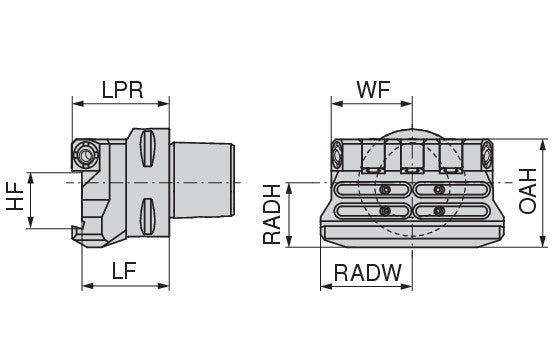

| Mounting spigot diameter / DCONMS | 1.3780" | 35.000 mm |
| Machine interface size | PSC 50 | |
| Functional height / HF | 1.0236" | 26.000 mm |
| Protruding length / LPR | 1.7717" | 45.000 mm |
| Body diameter, reduced / BDRED | 1.9685" | 50.000 mm |
| Overall height / OAH | 1.9685" | 50.000 mm |
| Functional length / LF | 1.5945" | 40.500 mm |
| Radial width / RADW | 1.6732" | 42.500 mm |
| Radial height / RADH | 1.1811" | 30.000 mm |
| Functional width / WF | 1.4764" | 37.500 mm |
| Version | radial | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
