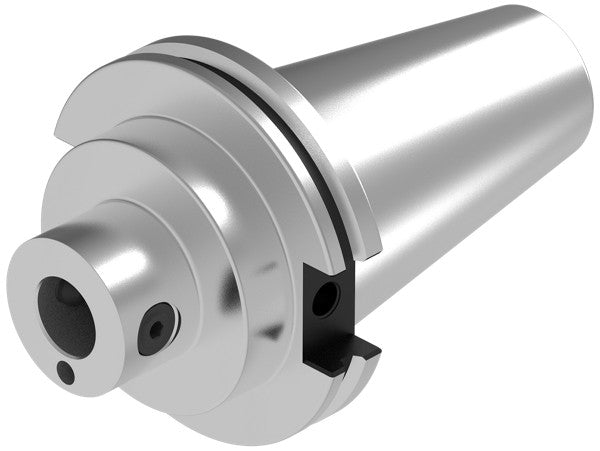

Ceratizit CAT.FC.AD50.GA.ABS63 HyPower - Adapter - CAT-FC - 8721313462 (0744887) [SKU:8721313462]

Ceratizit CAT.FC.AD50.GA.ABS63 HyPower - Adapter - CAT-FC - 8721313462 (0744887) [SKU:8721313462]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8721313462

Ceratizit Material Number: 8721313462

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

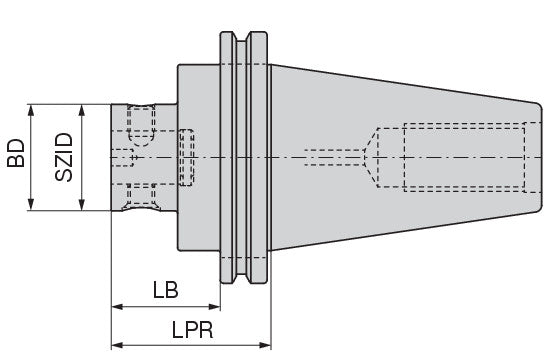

Properties
Name Ceratizit CAT.FC.AD50.GA.ABS63 HyPower - Adapter - CAT-FC - 8721313462
EDP # 0744887
Machine interface size CAT-FC 50
nominal size / SZID ABS 63
Protruding length / LPR 3.1496" 80.000 mm
Body length 1 / LB_1 1.7697" 44.950 mm
Overall length / OAL 7.1496" 181.600 mm
Body length / LB 2.4000" 60.960 mm
Clamping diameter (DCONWS) / DCONWS 1.3386" 34.000 mm
Body diameter, 2nd cutting step / BD_2 2.7500" 69.850 mm
Body diameter, 1st cutting step / BD_1 2.4803" 63.000 mm
Balance quality G 6.3 n<sub>max.</sub>8000


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
