Description
Ceratizit Article Number: 8723243499
Ceratizit Material Number: 8723243499
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

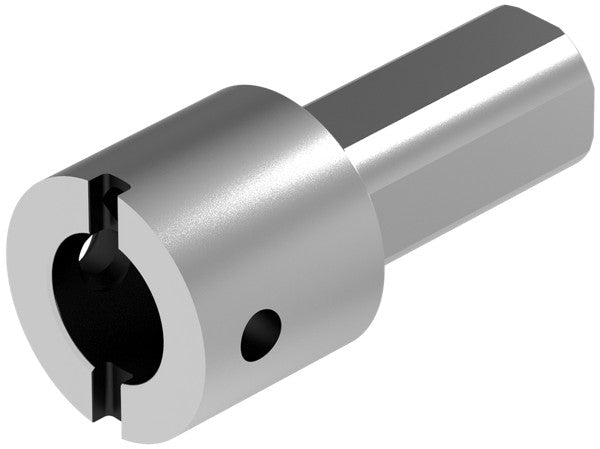

| Name | Ceratizit GA.AD2500.ABS63N Cylindrical Shank Adapter With ABS-N Connection 8723243499 | |
| EDP # | 0744904 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

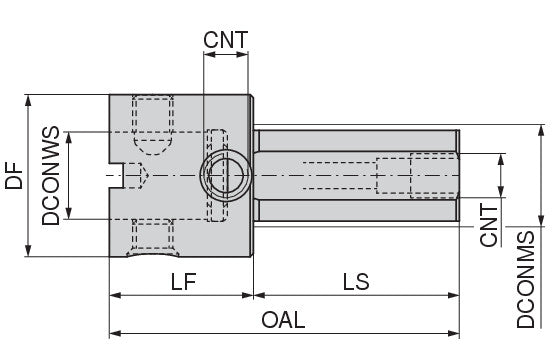

| nominal size / SZID | ABS 63 N | |
| Protruding length / LPR | 2.0000" | 50.800 mm |
| Coolant entry, thread size / CNT | 1/4" NPT | |
| Mounting spigot diameter / DCONMS | 2.5000" | 63.500 mm |
| Overall length / OAL | 7.5590" | 191.999 mm |
| Shank length / LS | 5.5590" | 141.199 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
