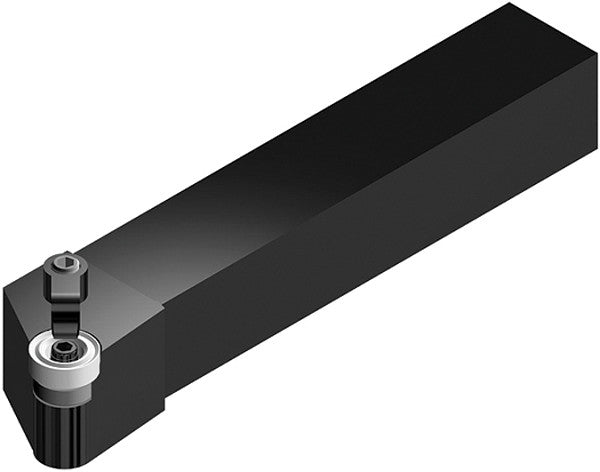

Ceratizit MRGNR 24-6E CoreLine 90° Toolholder With Top Clamping 7853002456 (0744989)
Ceratizit MRGNR 24-6E CoreLine 90° Toolholder With Top Clamping 7853002456 (0744989)
Couldn't load pickup availability
Ceratizit Article Number: 7853002456
Ceratizit Material Number: 1346940
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MRGNR 24-6E CoreLine 90° Toolholder With Top Clamping 7853002456 | |
| EDP # | 0744989 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Shank height / H | 1.5000" | 38.100 mm |
| Shank width / B | 1.5000" | 38.100 mm |
| Overall length / OAL | 7.0000" | 177.800 mm |
| Head length / LH | 1.3800" | 35.050 mm |
| Functional width / WF | 2.0000" | 50.800 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
