Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Swiper' line is a tight-tolerance 3D finishing tool which has as many flutes as possible in order to allow for very high feed rates while removing a thin layer of material. These tools should be used last in order to achieve the perfect final form and finish.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

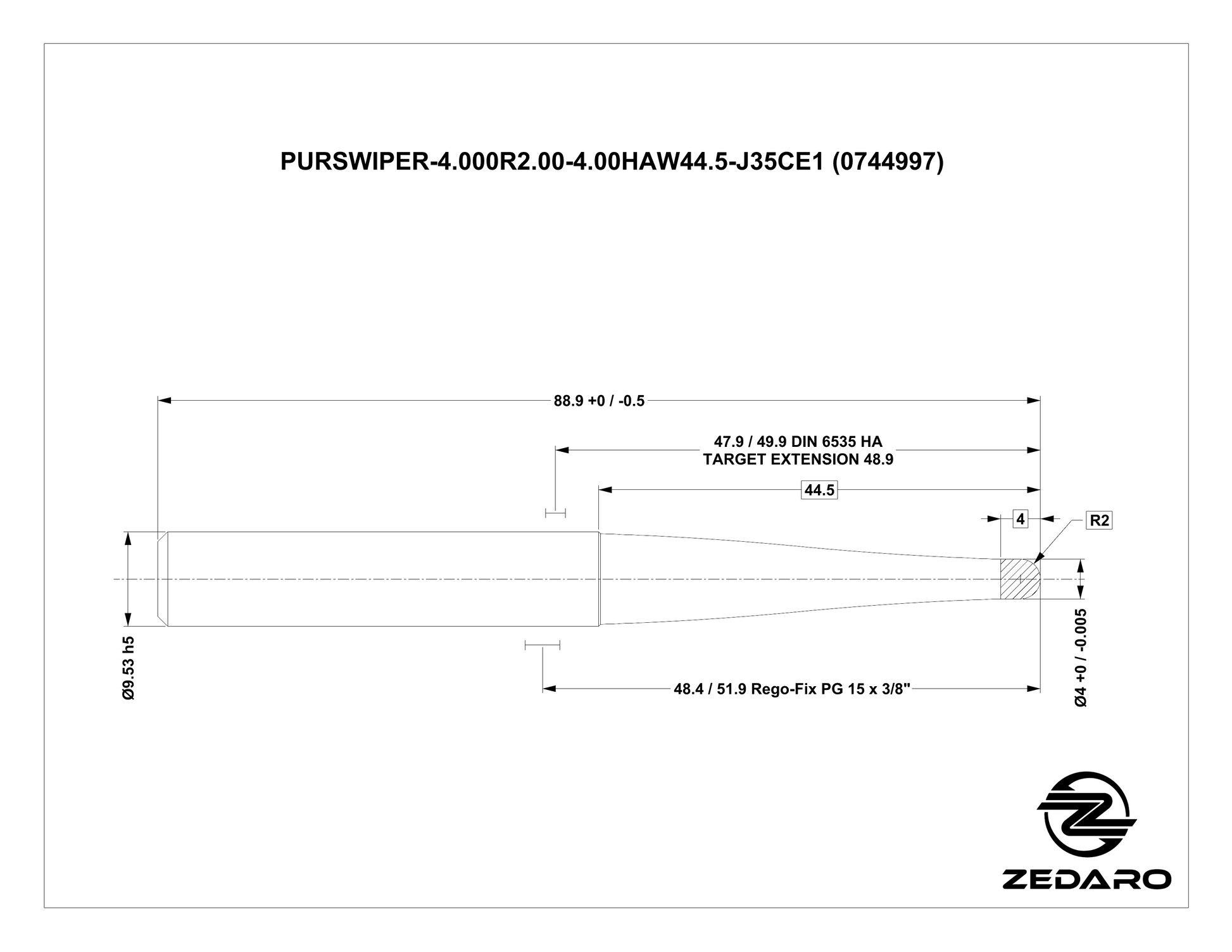

| Name | PURSWIPER-4.000R2.00-4.00HAW44.5-J35CE1 | |
| EDP # | 0744997 | |
| Material | Titanium | Application | Finish 3D Fine (Swiper) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Corner Radius | 0.0787" | 2.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.1575" | 4.000 mm |
| Reach | 0.1575" | 4.000 mm |
| Minimum Extension | 1.8" | 44.5 mm |
| Maximum Extension | 2.9" | 74.6 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h5 | |
