Description
Ceratizit Article Number: 7883600100
Ceratizit Material Number: 11072592
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

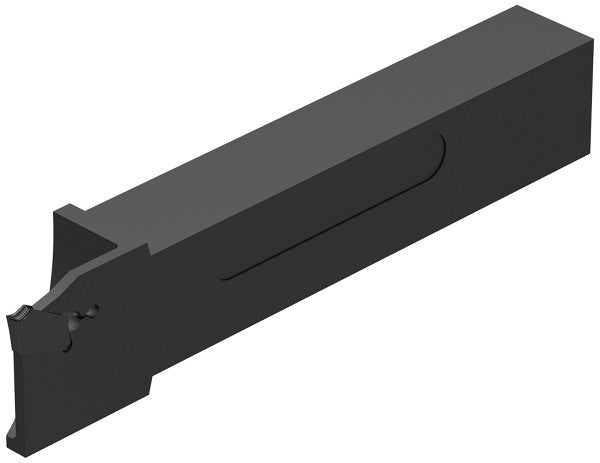

| Name | Ceratizit XLCFR 64 M31 FX-E CoreLine Radial Monoholder 7883600100 | |
| EDP # | 0745008 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 20.0 oz | 552 g |

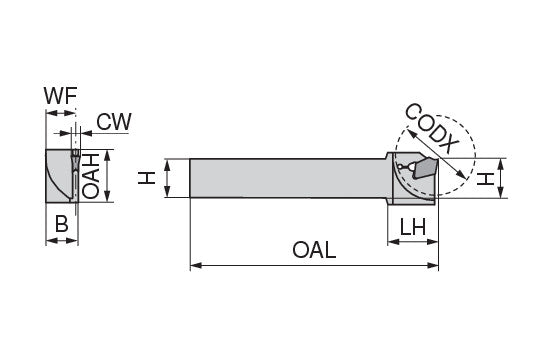

| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 0.7500" | 19.050 mm |
| Cutting width / CW | 0.1220" | 3.100 mm |
| Functional width / WF | 0.7030" | 17.860 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.2200" | 30.990 mm |
| Overall height / OAH | 1.1180" | 28.400 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
