Description
Ceratizit Article Number: 7883650000
Ceratizit Material Number: 11103960
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

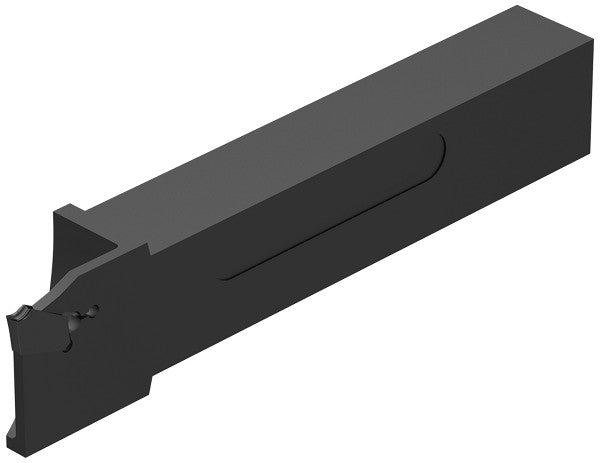

| Name | Ceratizit XLCER 08 F22 FX-E CoreLine Radial Monoholder 7883650000 | |
| EDP # | 0745020 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 108 g |

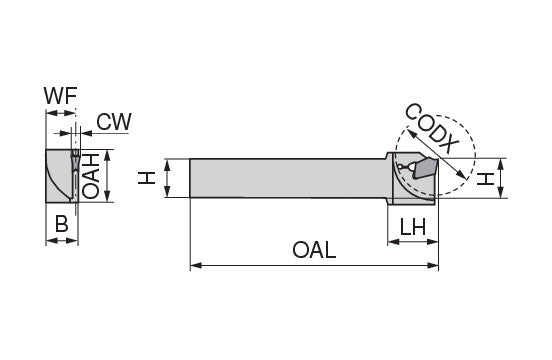

| Shank height / H | 0.5000" | 12.700 mm |
| Shank width / B | 0.5000" | 12.700 mm |
| Cutting width / CW | 0.0866" | 2.200 mm |
| Functional width / WF | 0.4970" | 12.620 mm |
| Overall length / OAL | 3.0000" | 76.200 mm |
| Head length / LH | 0.7090" | 18.010 mm |
| Overall height / OAH | 0.6230" | 15.820 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
