Description
Ceratizit Article Number: 7883662600
Ceratizit Material Number: 11103968
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

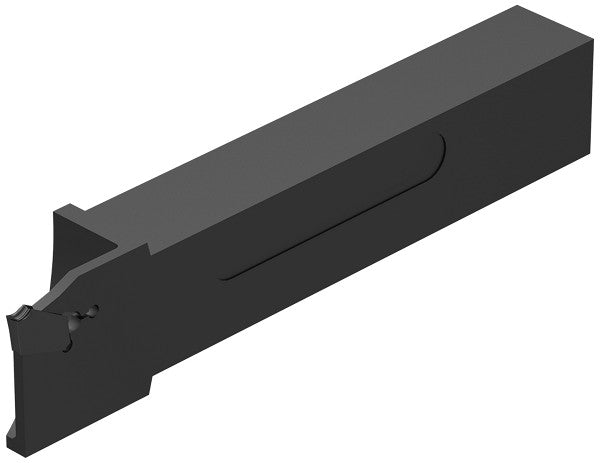

| Name | Ceratizit XLCFR 10 H31 FX-E CoreLine Radial Monoholder 7883662600 | |
| EDP # | 0745027 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 209 g |

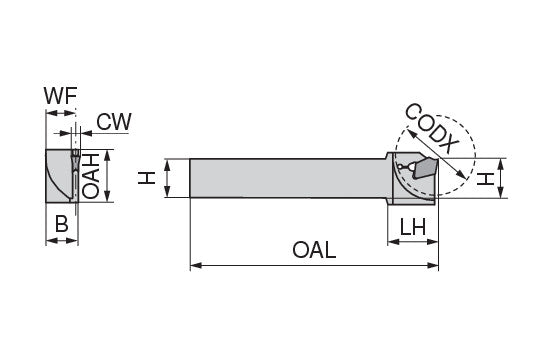

| Shank height / H | 0.6250" | 15.880 mm |
| Shank width / B | 0.6250" | 15.880 mm |
| Cutting width / CW | 0.1220" | 3.100 mm |
| Functional width / WF | 0.5780" | 14.680 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 0.8270" | 21.010 mm |
| Overall height / OAH | 0.7480" | 19.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
