Description
Ceratizit Article Number: 7881111600
Ceratizit Material Number: 11204503
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

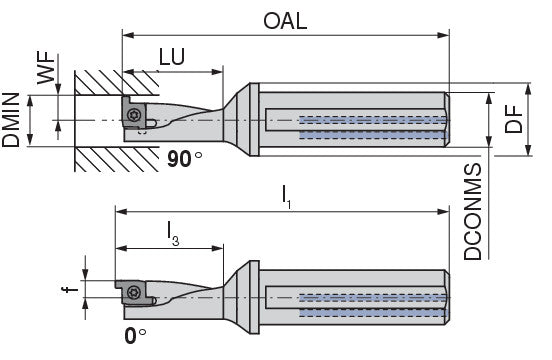

| Properties | ||
|---|---|---|
| Name | Ceratizit PM 16L-2.25D-E EcoCut Drilling, Turning And Grooving Tool ProfileMaster 2,25xD 7881111600 | |
| EDP # | 0745043 | |
| Weight (1 pc.) | 5.0 oz | 149 g |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Overall length / OAL | 3.8000" | 96.520 mm |
| Usable length / LU | 1.4170" | 35.990 mm |
| Functional width / WF | 0.3150" | 8.000 mm |
| L1 | 3.8906" | 98.820 mm |
| L3 | 1.5076" | 38.290 mm |
| F | 0.2244" | 5.700 mm |
| torque moment | 2.2 Nm | |
| Insert | PM 16R/L | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
