Description
Ceratizit Article Number: 7881112000
Ceratizit Material Number: 11204508
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

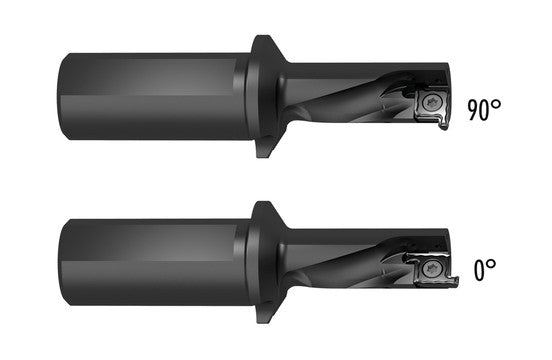

| Name | Ceratizit PM 20L-2.25D-E EcoCut Drilling, Turning And Grooving Tool ProfileMaster 2,25xD 7881112000 | |
| EDP # | 0745047 | |
| Weight (1 pc.) | 11.0 oz | 300 g |

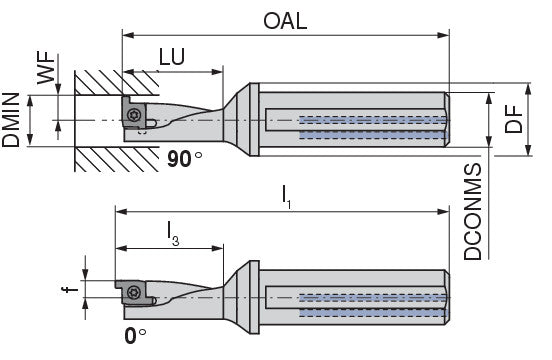

| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Overall length / OAL | 4.4000" | 111.760 mm |
| Usable length / LU | 1.7720" | 45.010 mm |
| Functional width / WF | 0.3940" | 10.010 mm |
| L1 | 4.5102" | 114.560 mm |
| L3 | 1.8822" | 47.810 mm |
| F | 0.2835" | 7.200 mm |
| torque moment | 2.2 Nm | |
| Insert | PM 20R/L | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
