Description
Ceratizit Article Number: 7881012500
Ceratizit Material Number: 11204515
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

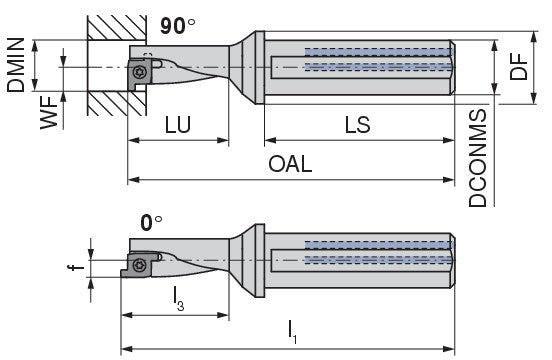

| Properties | ||
|---|---|---|

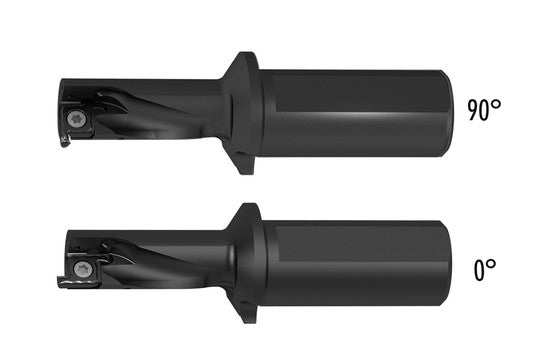

| Name | Ceratizit PM 25R-2.25D-E EcoCut Drilling, Turning And Grooving Tool ProfileMaster 2,25xD 7881012500 | |
| EDP # | 0745053 | |
| Weight (1 pc.) | 20.0 oz | 574 g |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Overall length / OAL | 5.2000" | 132.080 mm |
| Usable length / LU | 2.2170" | 56.310 mm |
| Functional width / WF | 0.4920" | 12.500 mm |
| L1 | 5.3299" | 135.380 mm |
| L3 | 2.3469" | 59.610 mm |
| F | 0.3622" | 9.200 mm |
| torque moment | 3.2 Nm | |
| Insert | PM 25R/L | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
