Description
Ceratizit Article Number: 7881013200
Ceratizit Material Number: 11204519
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

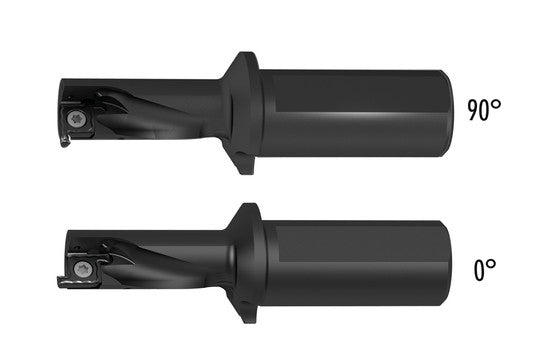

| Name | Ceratizit PM 32R-2.25D-E EcoCut Drilling, Turning And Grooving Tool ProfileMaster 2,25xD 7881013200 | |
| EDP # | 0745057 | |
| Weight (1 pc.) | 33.0 oz | 932 g |

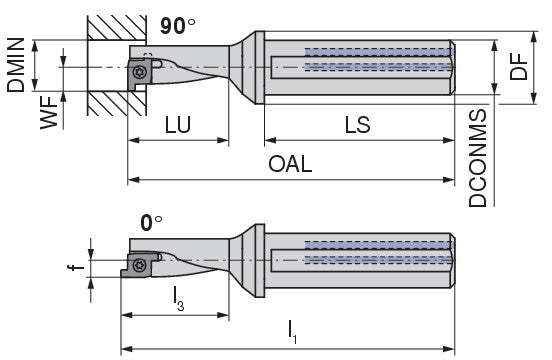

| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Overall length / OAL | 6.2000" | 157.480 mm |
| Usable length / LU | 2.8350" | 72.010 mm |
| Functional width / WF | 0.6300" | 16.000 mm |
| L1 | 6.3693" | 161.780 mm |
| L3 | 3.0043" | 76.310 mm |
| F | 0.4606" | 11.700 mm |
| torque moment | 5 Nm | |
| Insert | PM 32R/L | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
