Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 76103730
Ceratizit Material Number: 11826940
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7610373001, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

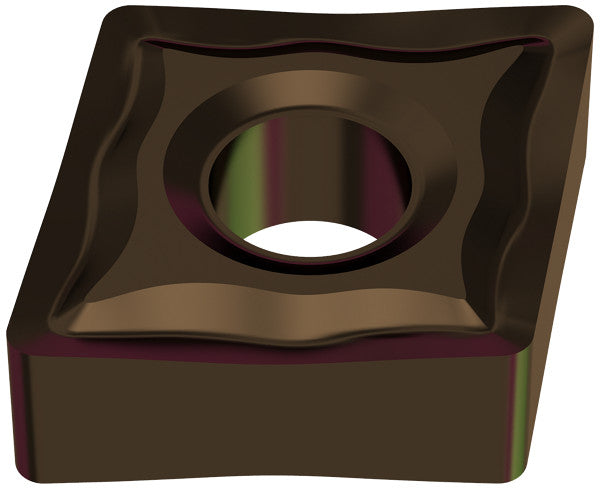

| Name | Ceratizit CNMG 120408EN-42 CTCP135 76103730 | |
| EDP # | 0745112 | |
| Weight (1 pc.) | 0.3 oz | 8.4 g |
| designation | 120408EN | |
| Corner radius / RE | 0.0315' | 0.800 mm |
| Cutting edge length / L | 0.5079' | 12.900 mm |
| Insert thickness / S | 0.1874' | 4.760 mm |
| Fixing hole diameter / D1 | 0.2031' | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000' | 12.700 mm |
| Chip breaker (Ceratizit) / CBMD | -42 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP135 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
