Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 1585514309
Ceratizit Material Number: 11852469
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MD-900.5D.0562.R.04.C0750-EF MaxiDrill Indexable Insert Drill 1585514309 | |
| EDP # | 0745119 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 230 g |

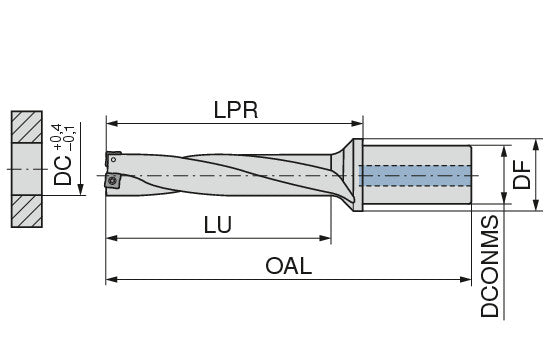

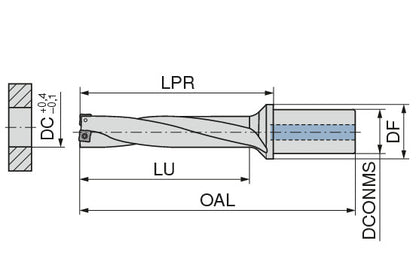

| Cutting diameter / DC | 0.5630' | 14.300 mm |
| Mounting spigot diameter / DCONMS | 0.7500' | 19.050 mm |
| Flange diameter / DF | 1.1810' | 29.997 mm |
| Overall length / OAL | 5.3890' | 136.881 mm |
| Protruding length / LPR | 3.4200' | 86.868 mm |
| Usable length / LU | 2.8100' | 71.374 mm |
| Insert | SONT 042105 | |
| torque moment | 0.7 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
