Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 1585322200
Ceratizit Material Number: 11884026
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

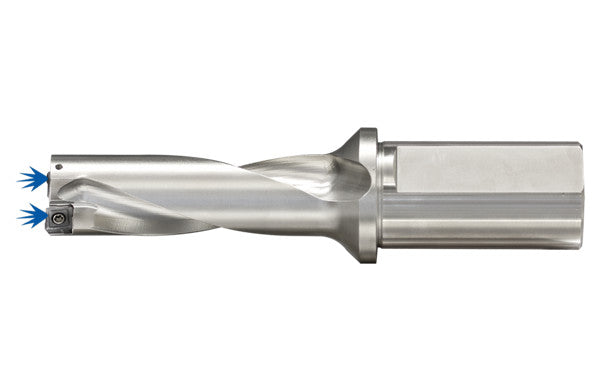

| Name | Ceratizit MD-900.3D.0875.R.07.C1000-EF MaxiDrill Indexable Insert Drill 1585322200 | |
| EDP # | 0745135 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 18.0 oz | 500 g |

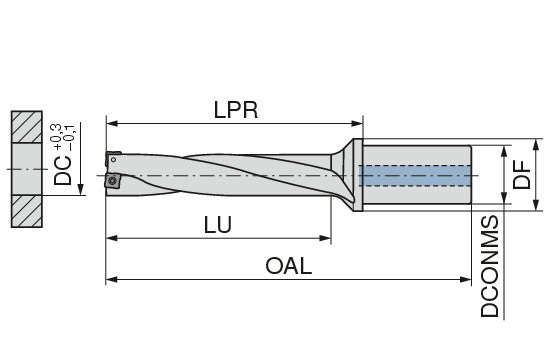

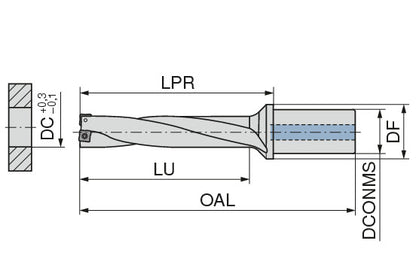

| Cutting diameter / DC | 0.8740' | 22.200 mm |
| Mounting spigot diameter / DCONMS | 1.0000' | 25.400 mm |
| Flange diameter / DF | 1.2600' | 32.004 mm |
| Overall length / OAL | 5.6170' | 142.672 mm |
| Protruding length / LPR | 3.4120' | 86.665 mm |
| Usable length / LU | 2.6250' | 66.675 mm |
| Insert | SONT 072907 | |
| torque moment | 1 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
