Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 1585357202
Ceratizit Material Number: 11884044
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

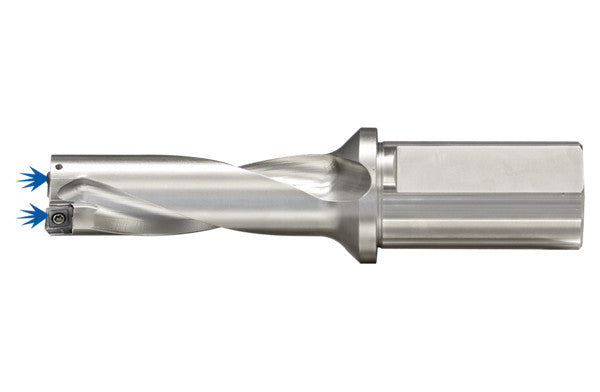

| Name | Ceratizit MD-900.3D.2250.R.17.C1500-EF MaxiDrill Indexable Insert Drill 1585357202 | |
| EDP # | 0745147 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 101.0 oz | 2850 g |

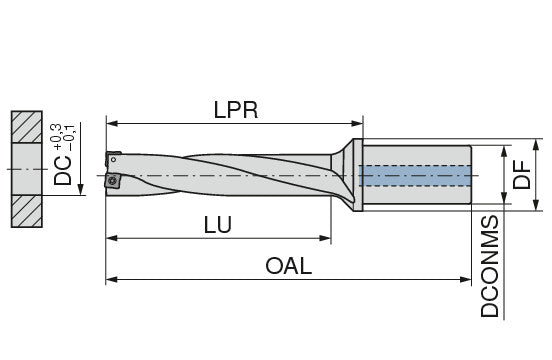

| Cutting diameter / DC | 2.2520' | 57.200 mm |
| Mounting spigot diameter / DCONMS | 1.5000' | 38.100 mm |
| Flange diameter / DF | 2.3620' | 59.995 mm |
| Overall length / OAL | 10.8840' | 276.454 mm |
| Protruding length / LPR | 8.1280' | 206.451 mm |
| Usable length / LU | 6.7500' | 171.450 mm |
| Insert | SONT 175612 | |
| torque moment | 5 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
