Description
Ceratizit Article Number: 7459851000
Ceratizit Material Number: 12004921
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

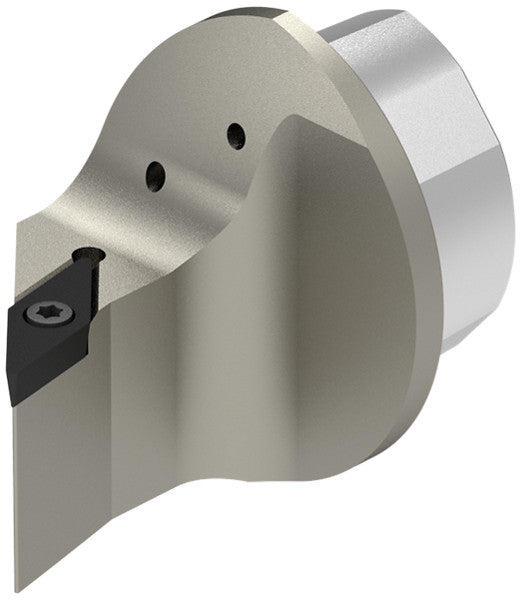

| Name | Ceratizit OC50R-SVXCR 16 OvalFlex 10° Tool Head For Radial Clamping 7459851000 | |
| EDP # | 0745276 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 390 g |

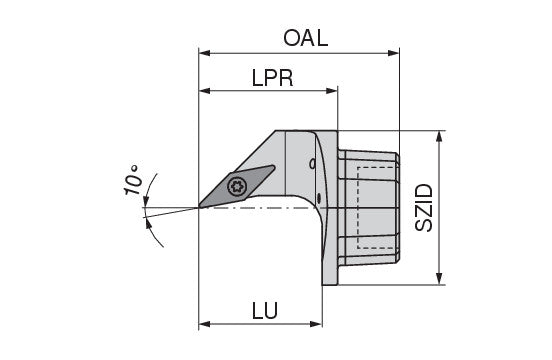

| Protruding length / LPR | 1.7717" | 45.000 mm |
| Functional width / WF | 0.0000" | 0.000 mm |
| Insert | VC.. 160408 | |
| Designation | OC50R SVXC R 16 | |
| nominal size / SZID | 50 | |
| Usable length / LU | 1.5748" | 40.000 mm |
| Machine interface size | OC50R | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
