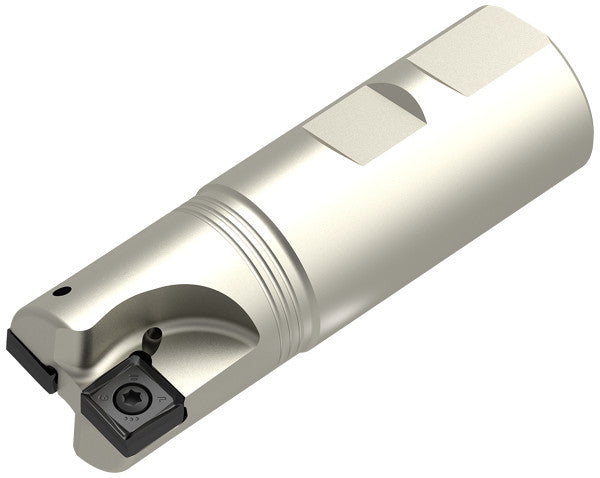

Ceratizit C491.125.R.03-09-B-150-EF CoreLine End Mills 491-09 5877432503 (0745885)
Ceratizit C491.125.R.03-09-B-150-EF CoreLine End Mills 491-09 5877432503 (0745885)
Couldn't load pickup availability
Ceratizit Article Number: 5877432503
Ceratizit Material Number: 12314900
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit C491.125.R.03-09-B-150-EF CoreLine End Mills 491-09 5877432503 | |
| EDP # | 0745885 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 19.0 oz | 543 g |
| Productsystem | 491-09 | |
| Machining process - Main Application | Face milling | |

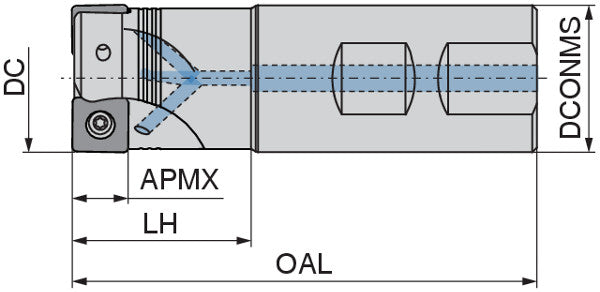

| Cutting diameter / DC | 1.2500" | 31.750 mm |
| Face mounted insert count / ZNF | 3 | |
| Depth of cut maximum / APMX | 0.2360" | 5.990 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 1.5000" | 38.100 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2500" | 31.750 mm |
| Rotational speed maximum / RPMX | 13700 1/min. | |
| Insert | SNHU 09T3 | |
| torque moment | 2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
