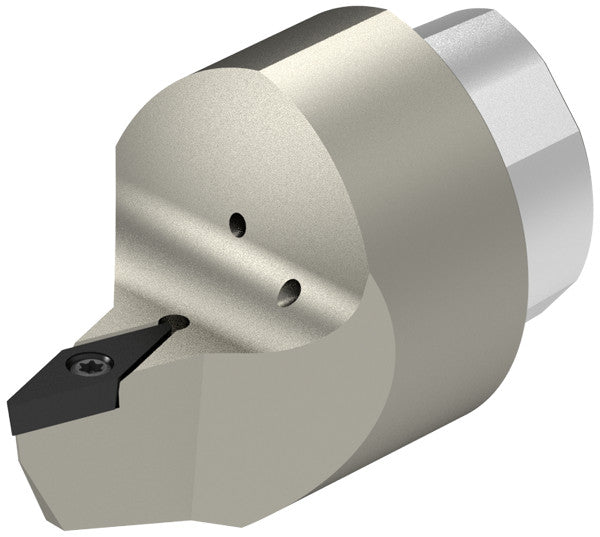

Ceratizit OC50-SVXCN 16 50049153 MaxiTurn 0° Tool Head For Axial Clamping OvalFlex 7459800002 (0745888)
Ceratizit OC50-SVXCN 16 50049153 MaxiTurn 0° Tool Head For Axial Clamping OvalFlex 7459800002 (0745888)
Couldn't load pickup availability
Ceratizit Article Number: 7459800002
Ceratizit Material Number: 12389298
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit OC50-SVXCN 16 50049153 MaxiTurn 0° Tool Head For Axial Clamping OvalFlex 7459800002 | |
| EDP # | 0745888 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 27.0 oz | 760 g |
| Product-Carbon-Footprint | B | |
| Productsystem | OvalFlex | |

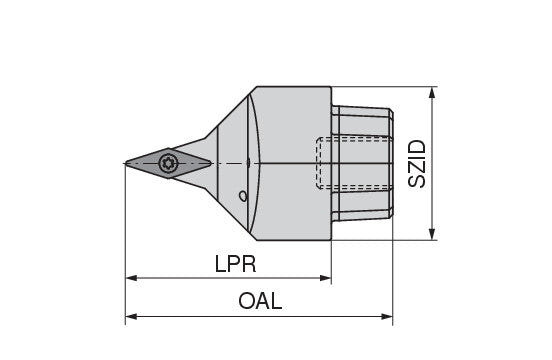

| Protruding length / LPR | 2.6378" | 67.000 mm |
| Functional width / WF | 0.0000" | 0.000 mm |
| Insert | VC.. 160408 | |
| Designation | OC50 SVXC N 16 | |
| nominal size / SZID | 50.0000" | 1270.000 mm |
| Machine interface size | OC50 | |
| Version | Neutral | |
Background Information:
CERATIZIT’s OvalFlex (OC) quick-change turning system. The oval clamping contour locates a head repeatably in seconds; OC50 heads clamp axially, OC50R/OC50S radially, and each mounts only its matching OvalFlex base holder (e.g. the VDI ISO 10889 to OC50/OC50R adapters).
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
