Description
Ceratizit Article Number: 7063802000
Ceratizit Material Number: 12616333
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

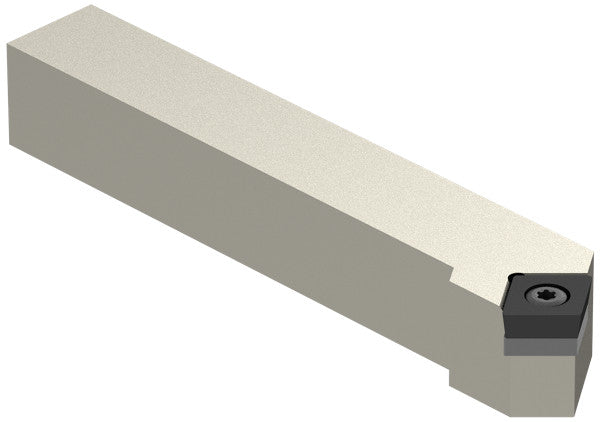

| Name | Ceratizit SCSCL 2020 K12 CoreLine - 45° - Tool Holder With Screw Clamping 7063802000 | |
| EDP # | 0745942 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) Cast Iron (Red) Composites (Black) HiTemp Alloy (Orange) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 16.0 oz | 445 g |
| Product-Carbon-Footprint | B | |

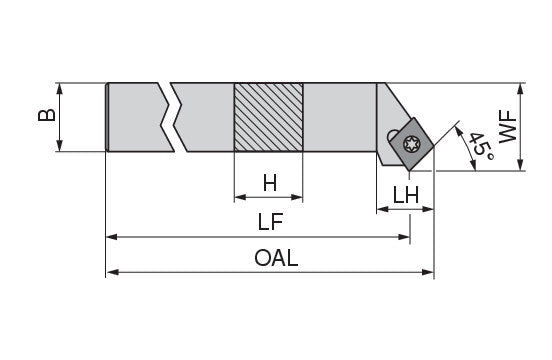

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 5.2539" | 133.450 mm |
| Functional length / LF | 4.9213" | 125.000 mm |
| Head length / LH | 0.7874" | 20.000 mm |
| Functional width / WF | 0.9843" | 25.000 mm |
| Insert | CC.. 1204 | |
| Overall height / OAH | 0.7598" | 19.300 mm |
| torque moment | 5 Nm | |
| Clamping system | Conical screw clamping for positive inserts | |
| holder form | SCSC 45° | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
