Description
Ceratizit Article Number: 7064301000
Ceratizit Material Number: 12617516
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

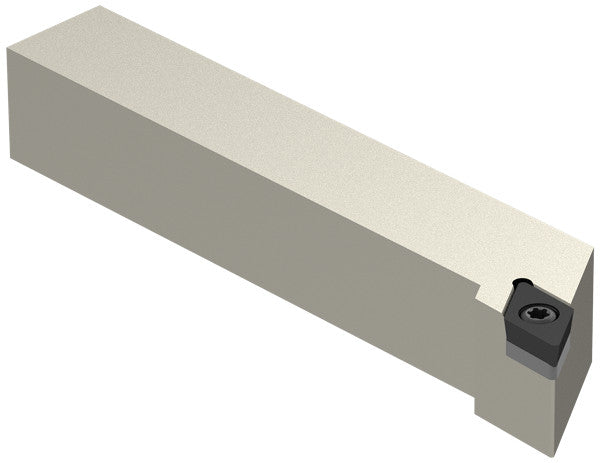

| Name | Ceratizit SDJCL 1010 E07 MaxiLock-S - 93° - Toolholder With Screw Clamping 7064301000 | |
| EDP # | 0745967 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.002 oz | 0.1 g |

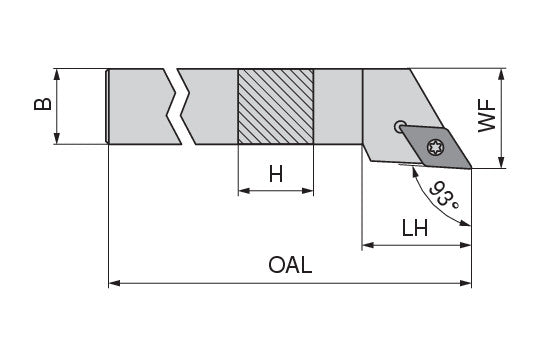

| Shank height / H | 0.3937" | 10.000 mm |
| Shank width / B | 0.3937" | 10.000 mm |
| Overall length / OAL | 2.7559" | 70.000 mm |
| Head length / LH | 0.5118" | 13.000 mm |
| Functional width / WF | 0.4724" | 12.000 mm |
| Insert | DC.. 0702 | |
| torque moment | 1.2 Nm | |
| Version | Left | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
