Description
Ceratizit Article Number: 7064303201
Ceratizit Material Number: 12618113
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

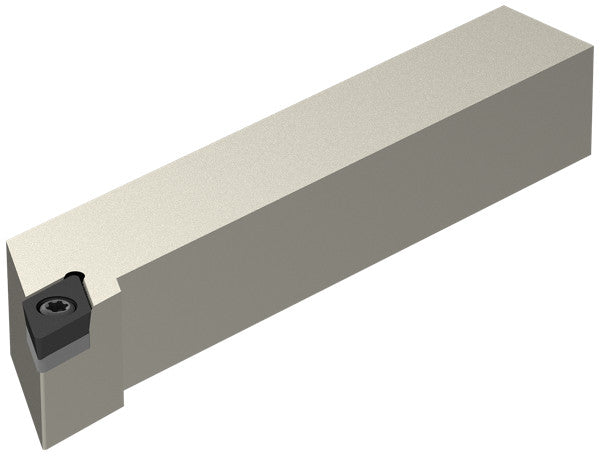

| Name | Ceratizit SDJCR 3225 P11 MaxiLock-S - 93° - Toolholder With Screw Clamping 7064303201 | |
| EDP # | 0745978 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 37.0 oz | 1050 g |

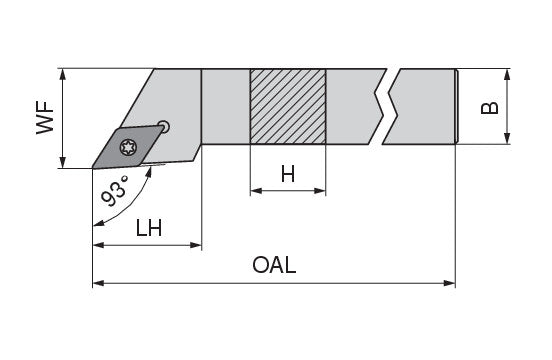

| Shank height / H | 1.2598" | 32.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 6.6929" | 170.000 mm |
| Head length / LH | 0.8346" | 21.200 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | DC.. 11T3 | |
| torque moment | 3.2 Nm | |
| Version | Right | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
