Description
Ceratizit Article Number: 7063501600
Ceratizit Material Number: 12643521
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

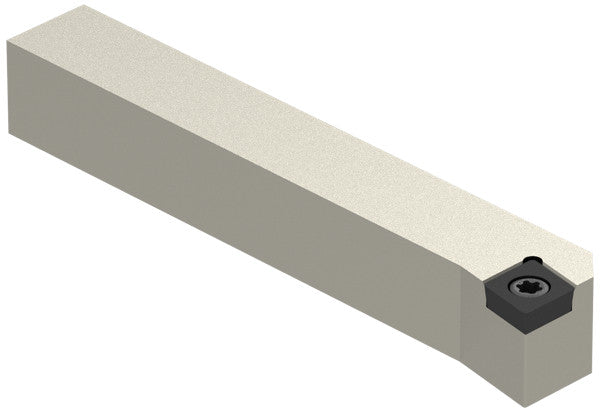

| Name | Ceratizit SCFCL 1616 H09 CoreLine - 90° - Tool Holder With Screw Clamping 7063501600 | |
| EDP # | 0746099 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Stainless Steel (Yellow) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 235 g |
| Product-Carbon-Footprint | B | |

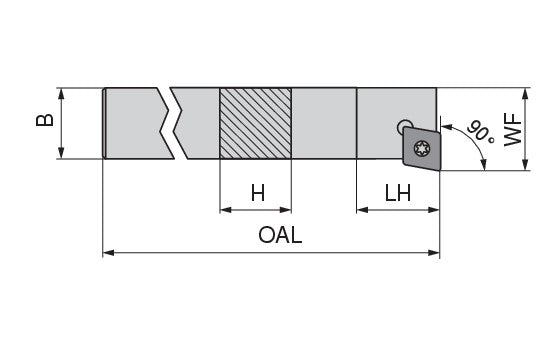

| Shank height / H | 0.6299" | 16.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Head length / LH | 0.5118" | 13.000 mm |
| Functional width / WF | 0.7874" | 20.000 mm |
| Insert | CC.. 09T3 | |
| torque moment | 3.2 Nm | |
| Clamping system | Conical screw clamping for positive inserts | |
| holder form | SCFC 90° | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
