Description
Ceratizit Article Number: 7884236300
Ceratizit Material Number: 14621914
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

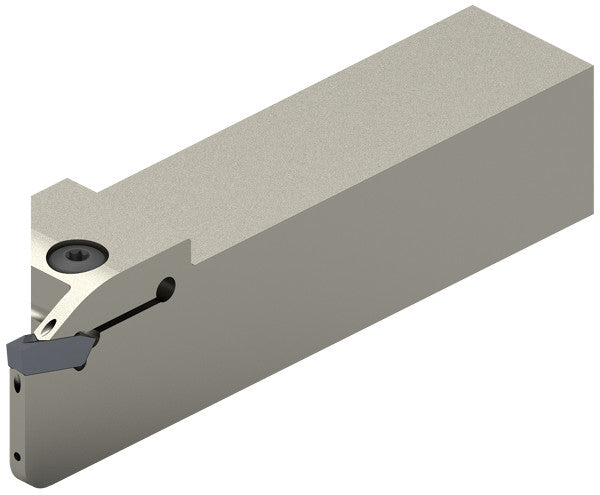

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

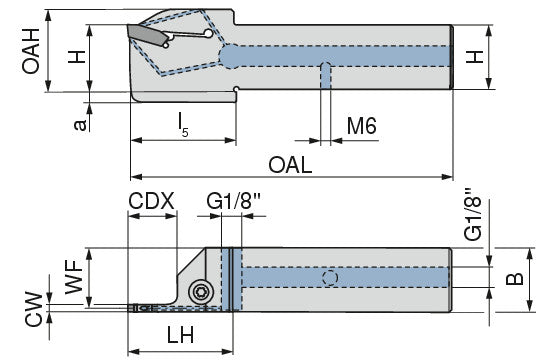

| Properties | ||
|---|---|---|
| Name | Ceratizit E16R0013S3-10X-S-DC-GX16-E MonoClamp Radial Monoholder GX-DC 7884236300 | |
| EDP # | 0746268 | |
| Weight (1 pc.) | 0.0004 oz | 0.0 g |
| Shank height / H | 0.6250" | 15.875 mm |
| Shank width / B | 0.6250" | 15.875 mm |
| Cutting width / CW | 0.1181" | 3.000 mm |
| Functional width / WF | 0.5797" | 14.725 mm |
| Overall length / OAL | 3.5433" | 90.000 mm |
| Head length / LH | 1.3780" | 35.000 mm |
| L5 | 1.4173" | 36.000 mm |
| Overall height / OAH | 0.8268" | 21.000 mm |
| Cutting depth maximum / CDX | 0.5118" | 13.000 mm |
| A | 0.1575" | 4.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
