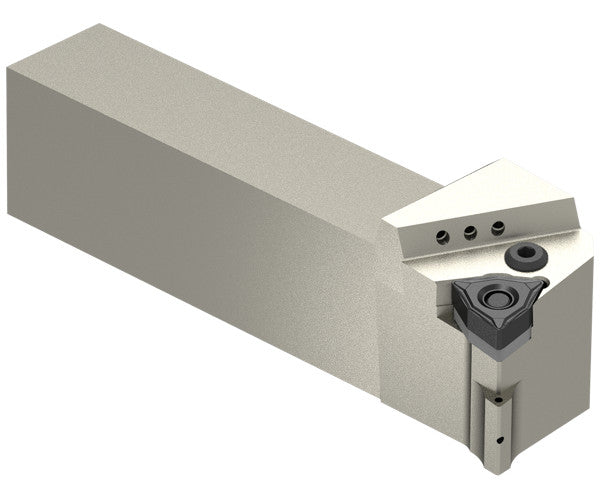

Ceratizit PWLNL 2020 X08-T DC CoreLine 95° Tool Holder w/ Lever Clamping 7059912000 (0746479) [SKU:7059912000]

Ceratizit PWLNL 2020 X08-T DC CoreLine 95° Tool Holder w/ Lever Clamping 7059912000 (0746479) [SKU:7059912000]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 7059912000

Ceratizit Material Number: 14745981

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit PWLNL 2020 X08-T DC CoreLine 95° Tool Holder w/ Lever Clamping 7059912000
EDP # 0746479
Workpiece Material(s) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White)
Weight (1 pc.) 13.0 oz 355 g
Product-Carbon-Footprint B
Insert WNMG 0804

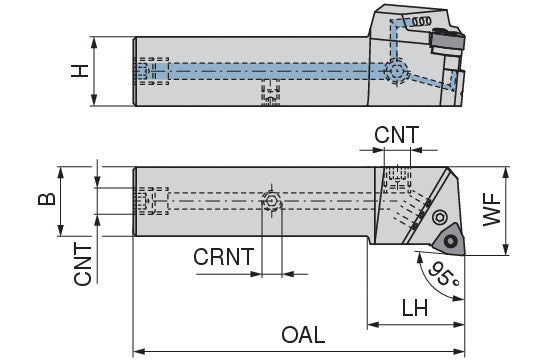

Shank height / H 0.7874" 20.000 mm
Shank width / B 0.7874" 20.000 mm
Overall length / OAL 4.0945" 104.000 mm
Head length / LH 1.3780" 35.000 mm
Functional width / WF 0.9843" 25.000 mm
Coolant entry style code, radial thread size / CRNT M6
Coolant entry, thread size / CNT G1/8"
torque moment 4 Nm
Clamping system Lever clamping for negative indexable inserts
holder form PWLN 95°
Internal Coolant DirectCooling
Version Left


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
