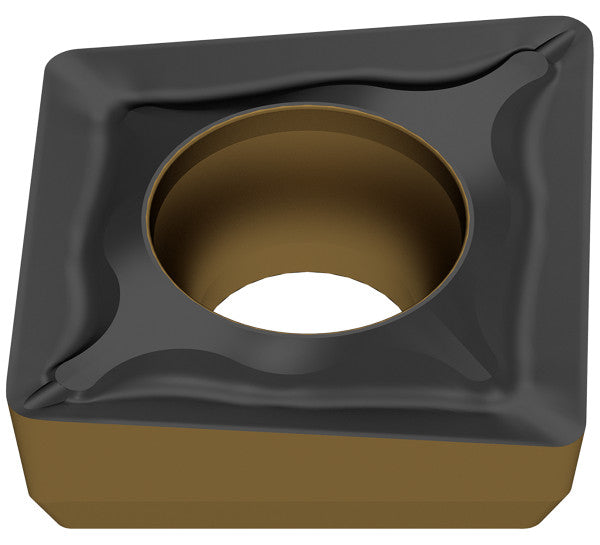

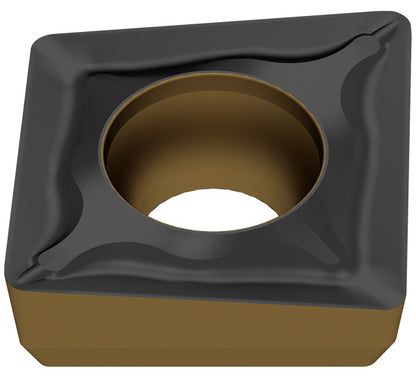

Ceratizit XCNT 130408EN-M50Q CTCP425-P EcoCut HM indexable Insert 7038679001 (0746526)
Ceratizit XCNT 130408EN-M50Q CTCP425-P EcoCut HM indexable Insert 7038679001 (0746526)
Couldn't load pickup availability
Ceratizit Article Number: 7038679001
Ceratizit Material Number: 14780610
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit XCNT 130408EN-M50Q CTCP425-P EcoCut HM indexable Insert 7038679001 | |
| EDP # | 0746526 | |
| Weight (1 pc.) | 0.3 oz | 7.4 g |
| Product-Carbon-Footprint | B | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2087" | 5.300 mm |
| designation | 130408EN | |
| Inscribed circle diameter / IC | 0.5315" | 13.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Indexable insert shape | XCNT | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
