Ceratizit KNUX 160410EL-12 CTCP135-P CoreLine Carbide Turning indexable Insert 7624270601 (0747386)
Ceratizit KNUX 160410EL-12 CTCP135-P CoreLine Carbide Turning indexable Insert 7624270601 (0747386)
Couldn't load pickup availability
Ceratizit Article Number: 7624270601
Ceratizit Material Number: 14791492
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

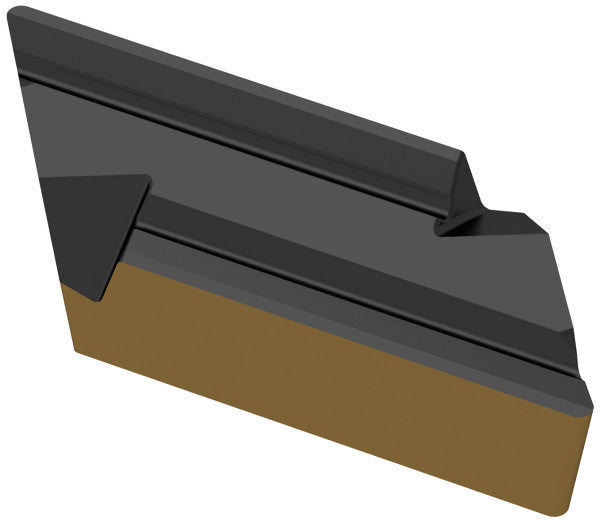

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KNUX 160410EL-12 CTCP135-P CoreLine Carbide Turning indexable Insert 7624270601 | |
| EDP # | 0747386 | |
| Weight (1 pc.) | 0.4 oz | 11.1 g |
| Product-Carbon-Footprint | D | |
| designation | 160410EL | |
| Corner radius / RE | 0.0394" | 1.000 mm |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | KNUX 160410EL | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -12 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
