Ceratizit TPMR 110304EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623270601 (0747398)
Ceratizit TPMR 110304EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623270601 (0747398)
Couldn't load pickup availability
Ceratizit Article Number: 7623270601
Ceratizit Material Number: 14795700
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TPMR 110304EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623270601 | |
| EDP # | 0747398 | |
| Weight (1 pc.) | 0.1 oz | 3.1 g |
| Product-Carbon-Footprint | D | |

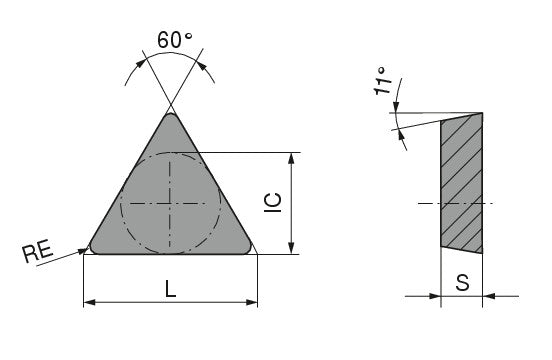

| designation | 110304EL | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TPMR 110304EL | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
