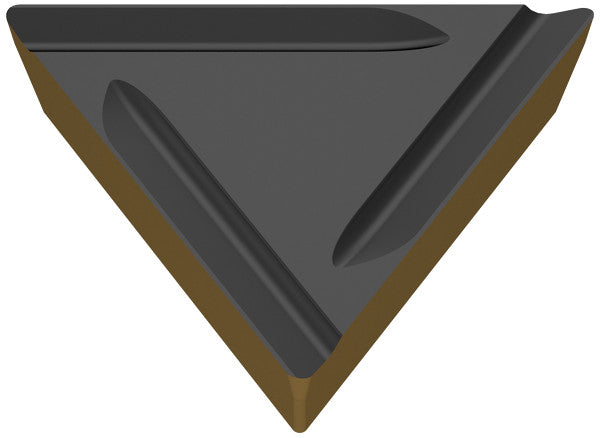

Ceratizit TPMR 160308EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623271801 (0747405)
Ceratizit TPMR 160308EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623271801 (0747405)
Couldn't load pickup availability
Ceratizit Article Number: 7623271801
Ceratizit Material Number: 14795726
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TPMR 160308EL CTCP135-P CoreLine Carbide Turning indexable Insert 7623271801 | |
| EDP # | 0747405 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |
| Product-Carbon-Footprint | D | |
| designation | 160308EL | |

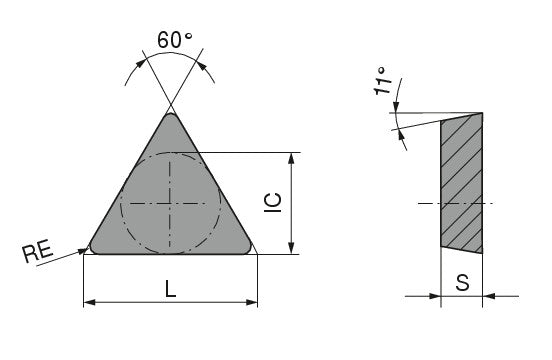

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6496" | 16.500 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 322EL | ||
| Size | 16.0000" | 406.400 mm |
| Designation | TPMR 160308EL | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
