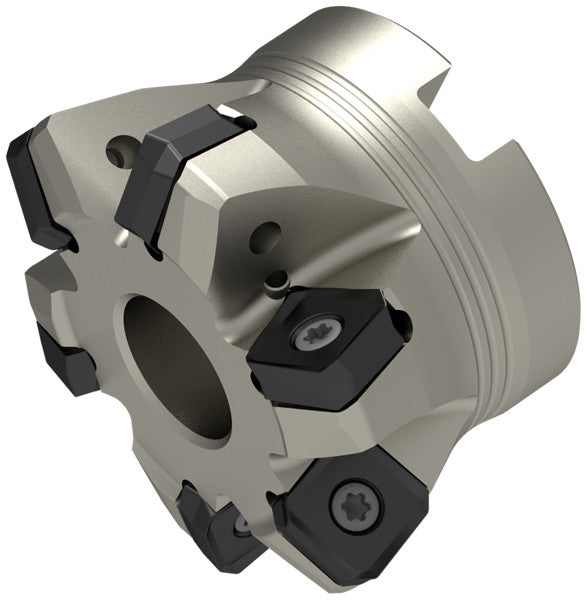

Ceratizit A271.300.R.07-12-A100-200-HFC-EF CoreLine Face Mill 271-12 5878730007 (0747420)
Ceratizit A271.300.R.07-12-A100-200-HFC-EF CoreLine Face Mill 271-12 5878730007 (0747420)
Couldn't load pickup availability
Ceratizit Article Number: 5878730007
Ceratizit Material Number: 57003100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A271.300.R.07-12-A100-200-HFC-EF CoreLine Face Mill 271-12 5878730007 | |
| EDP # | 0747420 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 31.0 oz | 883 g |
| Productsystem | 271-12 | |
| Machining process - Main Application | Face milling | |

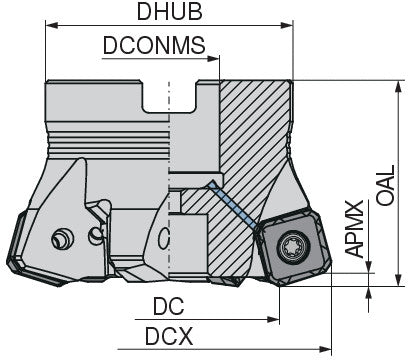

| Cutting diameter maximum / DCX | 3.5130" | 89.230 mm |
| Depth of cut maximum / APMX | 0.1020" | 2.590 mm |
| Face mounted insert count / ZNF | 7.0000" | 177.800 mm |
| Cutting diameter / DC | 3.0000" | 76.200 mm |
| Overall length / OAL | 2.0000" | 50.800 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 11600 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SOHU 1204.. | |
| Minimum Extension (DIN 6535 HA) | -0.3228" - -0.2441" | -8.200 - -6.200 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
