Description
Ceratizit Article Number: 10802380
Ceratizit Material Number: 1080238000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

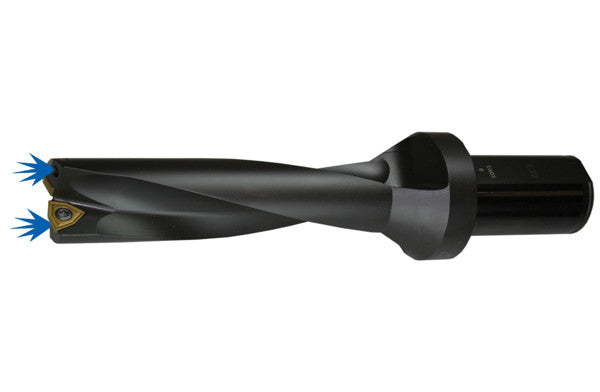

| Name | Ceratizit 4D.380.R.07 MaxiDrill - Indexable Insert Drill 10802380 | |
| EDP # | 0747530 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 32.0 oz | 894 g |

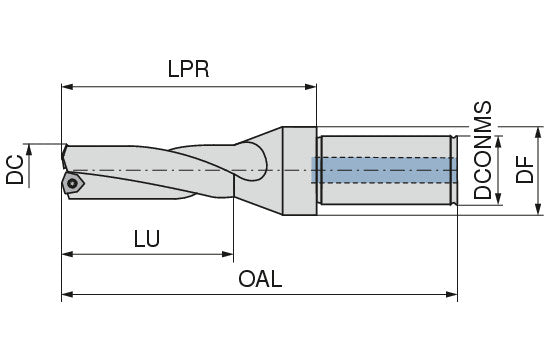

| Cutting diameter / DC | 1.4961" | 38.000 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Flange diameter / DF | 1.9291" | 49.000 mm |
| Overall length / OAL | 9.5276" | 242.000 mm |
| Protruding length / LPR | 7.2441" | 184.000 mm |
| Usable length / LU | 6.0630" | 154.000 mm |
| Insert | WCGT / XOMT 07T304 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
