Description
Ceratizit Article Number: 20450070
Ceratizit Material Number: 2045007000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D8,0X130MM Shank Extensions For Taps 20450070 | |
| EDP # | 0747833 | |
| Weight (1 pc.) | 3.0 oz | 79.4 g |
| Shank - DIN 374 / DIN376 | M11 | |
| Shank - DIN 371 | M8 | |

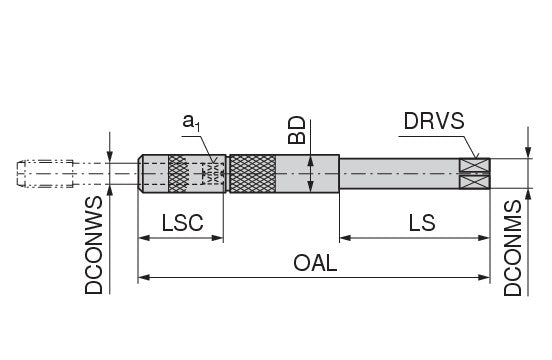

| A1 | 0.2441" | 6.200 mm |
| Mounting spigot diameter / DCONMS | 0.3150" | 8.000 mm |
| Overall length / OAL | 5.1181" | 130.000 mm |
| Clamping length machine side / LSC | 1.1811" | 30.000 mm |
| Shank length / LS | 2.3622" | 60.000 mm |
| Drive size / DRVS | 0.2441" | 6.200 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3150" | 8.000 mm |
| Neck diameter (BD) / BD | 0.5118" | 13.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
