Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 22073080
Ceratizit Material Number: 2207308000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SL15 NI-PM.M8.ISO2-6H.DIN371-C TICN Blind Hole Machine taps, Right Hand 22073080 | |
| EDP # | 0748100 | |
| Weight (1 pc.) | 1.0 oz | 32.9 g |

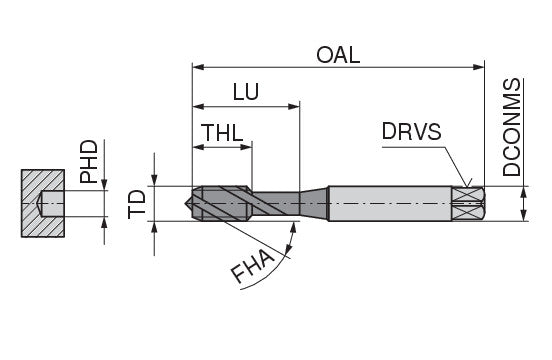

| Thread diameter range / TD | 0.3150' | 8.000 mm |
| Thread pitch / TP | 0.0492' | 1.250 mm |
| Overall length / OAL | 3.5433' | 90.000 mm |
| Mounting spigot diameter / DCONMS | 0.3150' | 8.000 mm |
| Drive size / DRVS | 0.2441' | 6.200 mm |
| Premachined hole diameter / PHD | 0.2677' | 6.800 mm |
| Thread cutting part length / THL | 0.7874' | 20.000 mm |
| Usable length / LU | 1.3780' | 35.000 mm |
| Flutes | 3 | |
| Thread tolerance class / TCTR | ISO 2 6H | |
| Coating name / Grade (Ceratizit) / COATN | TiCN | |
